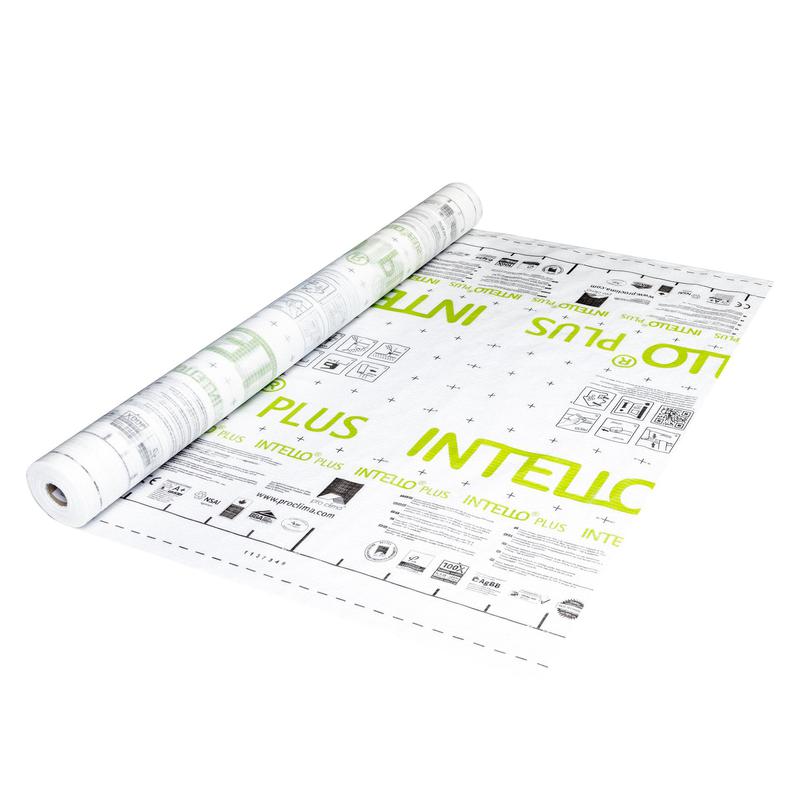

INTELLO PLUS
Reinforced High performance air barrier & vapour control layer
Item number: 10092 | GTIN: 4026639011244
Advantages
- Intelligent air barrier (IAB) for warm, dry, healthy buildings
- Maximises thermal insulation performance
- Highly diffusion resistant in winter
- Excellent back diffusion capacity in summer
Areas of application
INTELLO® PLUS is a market leading intelligent air barrier for all construction types. It provides superior energy and moisture control. INTELLO® PLUS maximises the performance of your thermal insulation, whilst restricting internal moisture from entering the building envelope.
INTELLO® PLUS is reinforced for strength and durability and uses our trademark Hydrosafe® technology. This intelligent air barrier provides optimal protection against structural damage and mould, even in the event of unexpected moisture intrusion.
General conditions
- This product should not be exposed to UV or water during the construction or operation of the building.
- Class 2 to Class 3 humidity-variable air barrier.
- Lowest VOC rating in hazardous substance test (ISO 16000).
- Well-protected winter building sites thanks to hydrosafe® behaviour.
PRODUCT DESCRIPTION
INTELLO® PLUS is an air barrier with smart vapour control, forming part of an intelligent airtightness system (IAS) when joints are sealed with TESCON® VANA and junctions are sealed with ORCON® Classic. The INTELLO® PLUS humidity-variable response is achieved by the polyethene (PE) copolymer laminated on spun-bonded polyethylene (PP) and reinforced with polypropylene mesh.
WEATHER EXPOSURE
This product should not be exposed to UV or water during the construction or operation of the building.
APPLICATION NOTES
INTELLO® PLUS should be installed with the printed side facing the installer, without folds, creases or tears to ensure airtight seals and optimal performance.
| Components |
|
Fleece Polypropylene (50% recycled material) |
|
Functional film Polyethylene copolymer |
|
Reinforcement Polypropylene non-woven fabric |
| Properties |
|
Colour White-translucent |
|
Surface weight 110 ±20 g/m² |
|
Thickness 0.4 ±0.15 mm |
|
Duty classification Light |
|
sd value, humidity-variable 0.25 - >25 m |
|
Vapour permeance 0.8 - <0.008 |
|
Vapour classification Class 2 - Class 3 |
|
Flammability index < 5 |
|
Absorbency > 100 g/m² |
|
Air resistance < 0.1 MN.s/m³ |
|
Edge tear-resistance MD/LD 373 N / 258 N |
|
Tensile strength MD/LD 7.9 kN/m / 5.3 kN/m |
|
Burst strength 395 N |
|
Heat shrinkage @ 70°C MD/LD 0.0% / 0.8% |
|
Moisture shrinkage Pass |
|
Temperature resistance, permanent -40 °C to +80 °C |
|
Emittance classification NN |
|
Passive House Certification phA |
